.. index:: ! text
.. include:: module_core_purpose.rst_

******
text
******

|text_purpose|

Synopsis
--------

.. include:: common_SYN_OPTs.rst_

**gmt text** [ *textfiles* ]
|-J|\ *parameters*
|SYN_OPT-Rz|
[ |-A| ]
[ |SYN_OPT-B| ]
[ |-C|\ [*dx*\ [/*dy*]][**+to**\|\ **O**\|\ **c**\|\ **C**] ]
[ |-D|\ [**j**\|\ **J**]\ *dx*\ [/*dy*][**+v**\ [*pen*]] ]
[ |-F|\ [**+a**\ [*angle*]][**+c**\ [*justify*]][**+f**\ [*font*]][**+j**\ [*justify*]][**+h**\|\ **l**\|\ **r**\ [*first*]\|\ **t**\ *text*\|\ **z**\ [*format*]] ]
[ |-G|\ [*fill*][**+n**] ]
[ |-L| ] [ |-M| ] [ |-N| ]
[ |-Q|\ **l**\|\ **u** ]
[ |-S|\ [*dx*/*dy*/][*shade*] ]
[ |SYN_OPT-U| ]
[ |SYN_OPT-V| ]
[ |-W|\ *pen* ]
[ |SYN_OPT-X| ]
[ |SYN_OPT-Y| ]
[ |-Z| ]
[ **-a**\ *col*\ =\ *name*\ [...] ]
[ |SYN_OPT-e| ]
[ |SYN_OPT-f| ]
[ |SYN_OPT-h| ]
[ **-it**\ *word* ]
[ |SYN_OPT-p| ]
[ |SYN_OPT-qi| ]
[ |SYN_OPT-tv| ]
[ |SYN_OPT-w| ]
[ |SYN_OPT-:| ]
[ |SYN_OPT--| ]

.. module_common_begins

Description
-----------

**text** plots text strings of variable size, font type, and
orientation. Various map projections are provided, with the option to
draw and annotate the map boundaries.

For a list of all fonts recognized by GMT see :doc:`reference/postscript-fonts`.
Greek characters, subscript, superscript, and small
caps are supported as follows:

.. list-table::
   :widths: 20 80
   :header-rows: 1

   * - Symbol
     - Behavior
   * - @~
     - Toggles between the selected font and Greek (Symbol)
   * - @%\ *font*\ %
     - Switches to *font* where *font* can either be a font *number* or *name* (see |-L|) (@%% resets it)
   * - @-
     - Toggles subscripts on/off
   * - @+
     - Toggles superscript on/off
   * - @#
     - Toggles small caps on/off
   * - @;\ *color*\ ;
     - Changes the font color (@;; resets it)
   * - @:\ *size*\ :
     - Changes the font size (@:: resets it)
   * - @\_
     - Toggles underline on/off
   * - @@
     - Prints the @ sign
   * - @.
     - Prints the degree symbol

@a, @c, @e, @i, @n, @o, @s, @u, @A, @C, @E, @N, @O, and @U give various accented European
characters, as indicated in Table :ref:`escape <tbl-shorthand>`. Composite characters
(overstrike) may be indicated with the @!<char1><char2> sequence, which will print the
two characters on top of each other.

To learn the octal codes for symbols not available on the
keyboard and some accented European characters, see Section :ref:`Char-esc-seq` and
Appendix :ref:`Chart-Octal-Codes-for-Chars` in the GMT Technical Reference. Note that
:term:`PS_CHAR_ENCODING` must be set to an extended character set in your
:doc:`gmt.conf` file in order to use the accented characters.

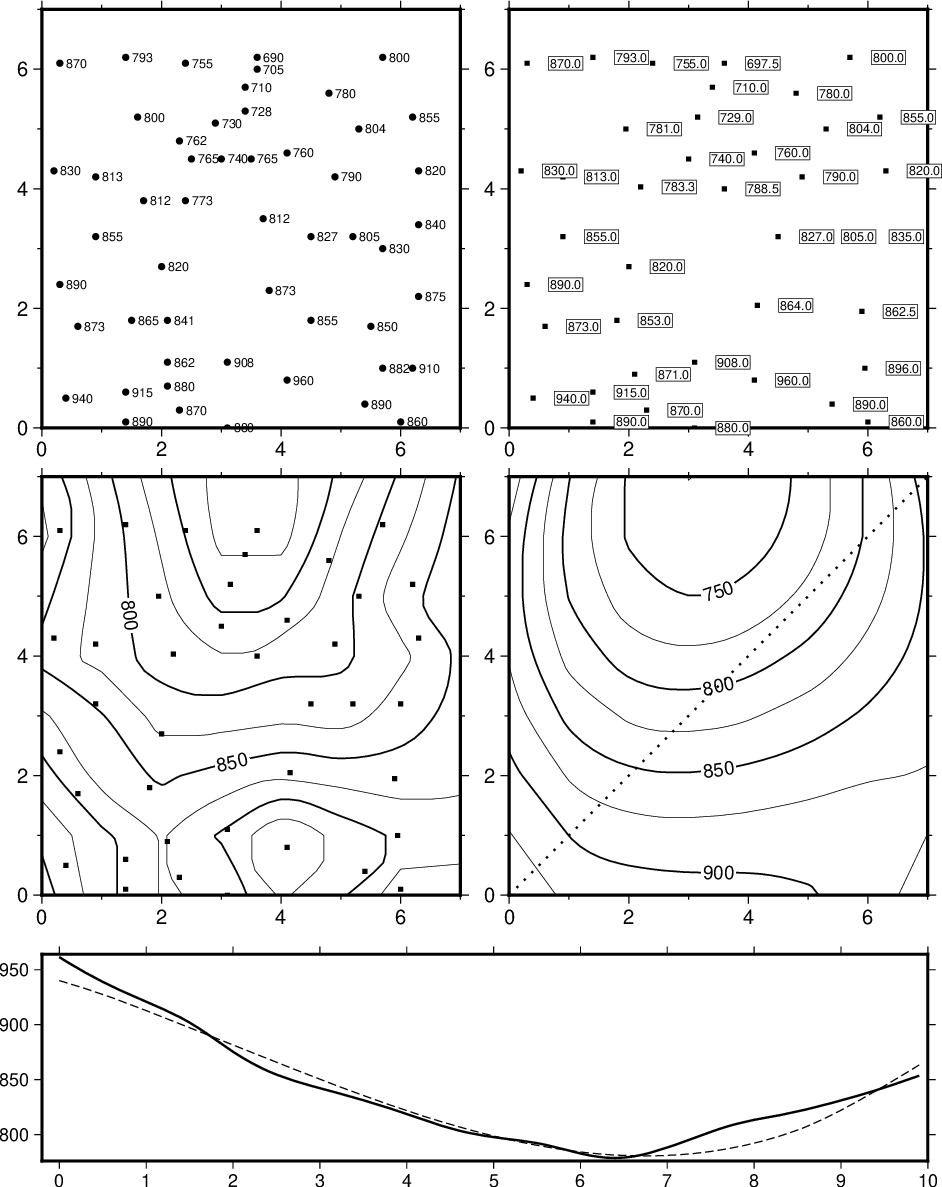

Using the |-G| or |-W| options, a rectangle underlying the text may be plotted
(does not work for strings with sub/super scripts, symbols, or composite
characters, except in paragraph mode (|-M|)).

Finally, you may typeset LaTeX expressions provided they are enclosed in @[ ... @[ or <math> ... </math>;
see Chapter :doc:`/reference/gmt-latex` for more details.

Required Arguments
------------------

*textfiles*
    This is one or more files containing 1 or more records with (*x*
    *y* [*font* *angle* *justify*] *text*). The presence or absence of
    items in the brackets are determined by |-F|. If no files
    are given, **text** will read standard input. *font* is a font
    specification with format [*size*,][*font*,][*color*] where
    *size* is text size in points, *font* is the font to use, and
    *color* sets the font color. To draw outline fonts you append
    =\ *pen* to the font specification. The *angle* is measured in degrees
    counter-clockwise from horizontal, and *justify* sets the alignment.
    If *font* is not an integer, then it is taken to be a text string
    with the desired font name (see |-L| for available fonts). The
    alignment refers to the part of the text string that will be mapped
    onto the (*x*,\ *y*) point. Choose a 2 character combination of **L**,
    **C**, **R** (for left, center, or right) and **T**, **M**, **B**
    for top, middle, or bottom. e.g., **BL** for bottom left.

.. |Add_-J| replace:: |Add_-J_links|
.. include:: explain_-J.rst_
    :start-after: **Syntax**
    :end-before: **Description**

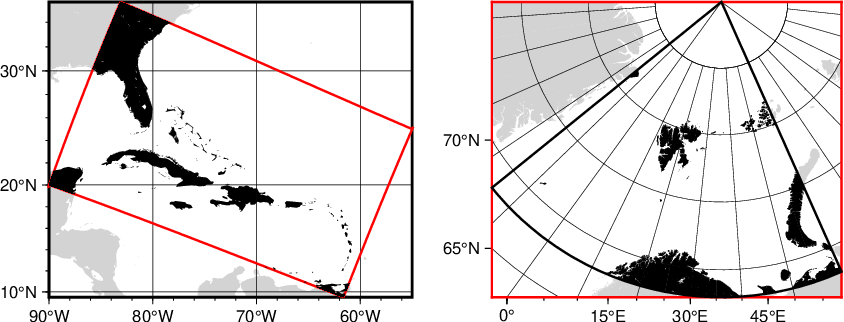

.. |Add_-R| replace:: |Add_-R_links|
.. include:: explain_-R.rst_
    :start-after: **Syntax**
    :end-before: **Description**

.. |Add_-Rz| unicode:: 0x20 .. just an invisible code
.. include:: explain_-Rz.rst_

Optional Arguments
------------------

.. _-A:

**-A**
    Angles are given as azimuths; convert them to directions using the
    current projection.

.. |Add_-B| replace:: |Add_-B_links|
.. include:: explain_-B.rst_
    :start-after: **Syntax**
    :end-before: **Description**

.. _-C:

**-C**\ [*dx*\ [/*dy*]][**+to**\|\ **O**\|\ **c**\|\ **C**]
    Adjust the clearance between the text and the surrounding box [15%].
    Only used if |-W| or |-G| are specified. Append the unit you
    want (**c**\ m, **i**\ nch, or **p**\ oint; if not given we consult
    :term:`PROJ_LENGTH_UNIT`) or % for a percentage of the font size.
    If *dy* is not specified then it is set equal to *dx*. Optionally,
    use modifier **+t** to append the shape of the textbox when using |-G| and/or |-W|:

    - **o** - Straight rectangle [Default].
    - **O** - Set a rounded rectangle.
    - **c** - Paragraph mode (|-M| only) selects a concave rectangle.
    - **C** - Paragraph mode (|-M| only) selects a convex rectangle.

.. _-D:

**-D**\ [**j**\|\ **J**]\ *dx*\ [/*dy*][**+f**\ *offsets_file*][**+v**\ [*pen*]]
    Offsets the text from the projected (*x*,\ *y*) point by *dx*,\ *dy*
    [0/0]. If *dy* is not specified then it is set equal to *dx*. Prepend
    an optional directive:

    - **j** - Offset the text away from the point instead (i.e., the
      text justification will determine the direction of the shift).
    - **J** - Shorten diagonal offsets at corners by :math:`\sqrt{2}`.
    - **+f** - Read per-record (*dx*, *dy*) offsets from *offsets_file* instead
      of using the single fixed *dx*\ [/*dy*] value. The file must have two
      columns, one offset pair per text record, in the same order as the input
      data. Values are in the current length unit [:term:`PROJ_LENGTH_UNIT`].
    - **+v** - Draw a line from the original point to the shifted point;
      append a *pen* to change the attributes for this line.  **Note**:
      The **-Dj**\|\ **J** selection cannot be used with paragraph mode (|-M|).

.. _-F:

**-F**\ [**+a**\ [*angle*]][**+c**\ [*justify*]][**+f**\ [*font*]][**+j**\ [*justify*]][**+h**\|\ **l**\|\ **r**\ [*first*]\|\ **t**\ *text*\|\ **z**\ [*format*]]
    By default, text will be placed horizontally, using the primary
    annotation font attributes [:term:`FONT_ANNOT_PRIMARY`], and centered
    on the data point. Use |-F| to override these defaults by
    specifying up to three text attributes (font, angle, and
    justification) directly on the command line via these modifiers:

    - **+a** - Set the text *angle*; if no angle is given then the input file must have
      this angle as a column.
    - **+A** - Force text-baselines to convert into the -90/+90 range.
    - **+c** - Append *justification* to set the *x, y* coordinates extracted from the
      |-R| string instead of providing them in the input file. For example **-F+c**\ TL
      gets the *x_min*, *y_max* from the |-R| string and plots the text
      at the Upper Left corner of the map.
    - **+f** - Set the font ([*size*][,\ *fontname*][,\ *color*]); if no font info
      is given then the input file must have this information in one of its columns.
    - **+j** - Set the text justification; if no justification is given then the input
      file must have this item as a column.

    Normally, the text is read from the data records. Alternative ways to provide text:

    - **+h** - Use the most recent segment header as the text to be plotted.
    - **+l** - Use the most recent segment label as the text to be plotted.
    - **+r** - Use the record number (counting up from *first* [0]) as the text to be plotted.
    - **+t** - Use the appended *text* to set a fixed text string (if *text* contains plus
      characters then the **+t** modifier must be the last modifier in |-F|).
    - **+z** - Format incoming *z* values to a string using the supplied *format*
      [if not appended we use :term:`FORMAT_FLOAT_MAP`].

    **Notes**: |-F|\ **+h**\|\ **l**\|\ **r**\|\ **t**\|\ **z** can't be used with |-M|.

    **Notes**: (1) If |-Z| is in effect then the *z* value used for formatting is in the
    4th, not 3rd column. If you only want a specific word from the trailing text and
    not the whole line, use **-it**\ *word* to indicate which word (0 is the first word)
    you want. (2) Items read from the data file should be in the same order as
    the modifiers are specified with the |-F| option. Example:
    **-F**\ **+f**\ 12p,Helvetica-Bold,red\ **+j+a** selects a 12p red
    Helvetica-Bold font and expects to read the justification and angle
    from the file, in that order, after *x* *y* and before *text*.

.. _-G:

**-G**\ [*fill*][**+n**]
    Sets the shade or color used for filling the text box [Default is no
    fill]. Alternatively, give no *fill* to plot text and then use the
    text dimensions (and |-C|) to build clip paths and turn clipping on.
    This clipping can then be turned off later with :doc:`clip` |-C|.
    To **not** plot the text but activate clipping, use **-G+n** instead.
    **Note**: cannot be used with LaTeX expressions.

.. _-L:

**-L**
    Lists the font-numbers and font-names available, then exits.

.. _-M:

**-M**
    Paragraph mode. Files must be multiple segment files. Segments are
    separated by a special record whose first character must be *flag*
    [Default is **>**]. Starting in the 3rd field, we expect to find
    information pertaining to the typesetting of a text paragraph (the
    remaining lines until next segment header). The information expected
    is (*x y* [*font angle justify*] *linespace parwidth parjust*),
    where *x y font angle justify* are defined above (the presence or
    absence of *font*, *angle*, and *justify* are determined by |-F|), while *linespace* and
    *parwidth* are the linespacing and paragraph width, respectively.
    The justification of the text paragraph is governed by *parjust*
    which may be **l**\ (eft), **c**\ (enter), **r**\ (ight), or
    **j**\ (ustified). The segment header is followed by one or more
    lines with paragraph text. Text may contain the escape sequences
    discussed above, although composite characters are not supported.
    Separate paragraphs with a blank line.  Note that here,
    the justification set via **-F+j** applies to the box alignment
    since the text justification is set by *parjust*.  **Note**:
    cannot be used with LaTeX expressions.

.. _-N:

**-N**
    Do **not** clip text at map boundaries [Default will clip].

.. _-Q:

**-Q**\ **l**\|\ **u**
    Change all text to either **l**\ ower or **u**\ pper case [Default
    leaves all text as is].

.. _-S:

**-S**\ [*dx*/*dy*/][*shade*]
    Plot an offset background shaded region beneath the text box. Here, *dx*/*dy*
    indicates the shift relative to the text box [4\ **p**/-4\ **p**] and *shade*
    sets the fill color to use for shading [gray50].

.. |Add_-U| replace:: |Add_-U_links|
.. include:: explain_-U.rst_
    :start-after: **Syntax**
    :end-before: **Description**

.. |Add_-V| replace:: |Add_-V_links|
.. include:: explain_-V.rst_
    :start-after: **Syntax**
    :end-before: **Description**
.. _-W:

**-W**\ *pen*
    Sets the pen used to draw a rectangle around the text string (see
    |-C|) [Default is width = 0.25p, color = black, style = solid].
    **Note**: cannot be used with LaTeX expressions.

.. |Add_-XY| replace:: |Add_-XY_links|
.. include:: explain_-XY.rst_
    :start-after: **Syntax**
    :end-before: **Description**

.. _-Z:

**-Z**
    For 3-D projections: expect each item to have its own level given in
    the 3rd column, and |-N| is implicitly set. (Not implemented for
    paragraph mode).  **Note**: If **-F+z** is used then the text level
    is based on the 4th data column instead.

.. include:: explain_-aspatial.rst_

.. |Add_-e| unicode:: 0x20 .. just an invisible code
.. include:: explain_-e.rst_

.. |Add_-f| unicode:: 0x20 .. just an invisible code
.. include:: explain_-f.rst_

.. |Add_-h| unicode:: 0x20 .. just an invisible code
.. include:: explain_-h.rst_

.. _-i:

**-it**\ *word*
    In this module, **-it** can be used to select a specific word from the
    trailing text [Default is the entire trailing text].  The *word* indicates
    the word order, with the first word being 0.  No numerical columns can be specified.

.. |Add_perspective| replace:: (Not implemented for paragraph mode).
.. include:: explain_perspective.rst_

.. include:: explain_-qi.rst_

.. include:: explain_-tv_full.rst_

.. include:: explain_-w.rst_

.. include:: explain_colon.rst_

.. include:: explain_help.rst_

.. module_common_ends

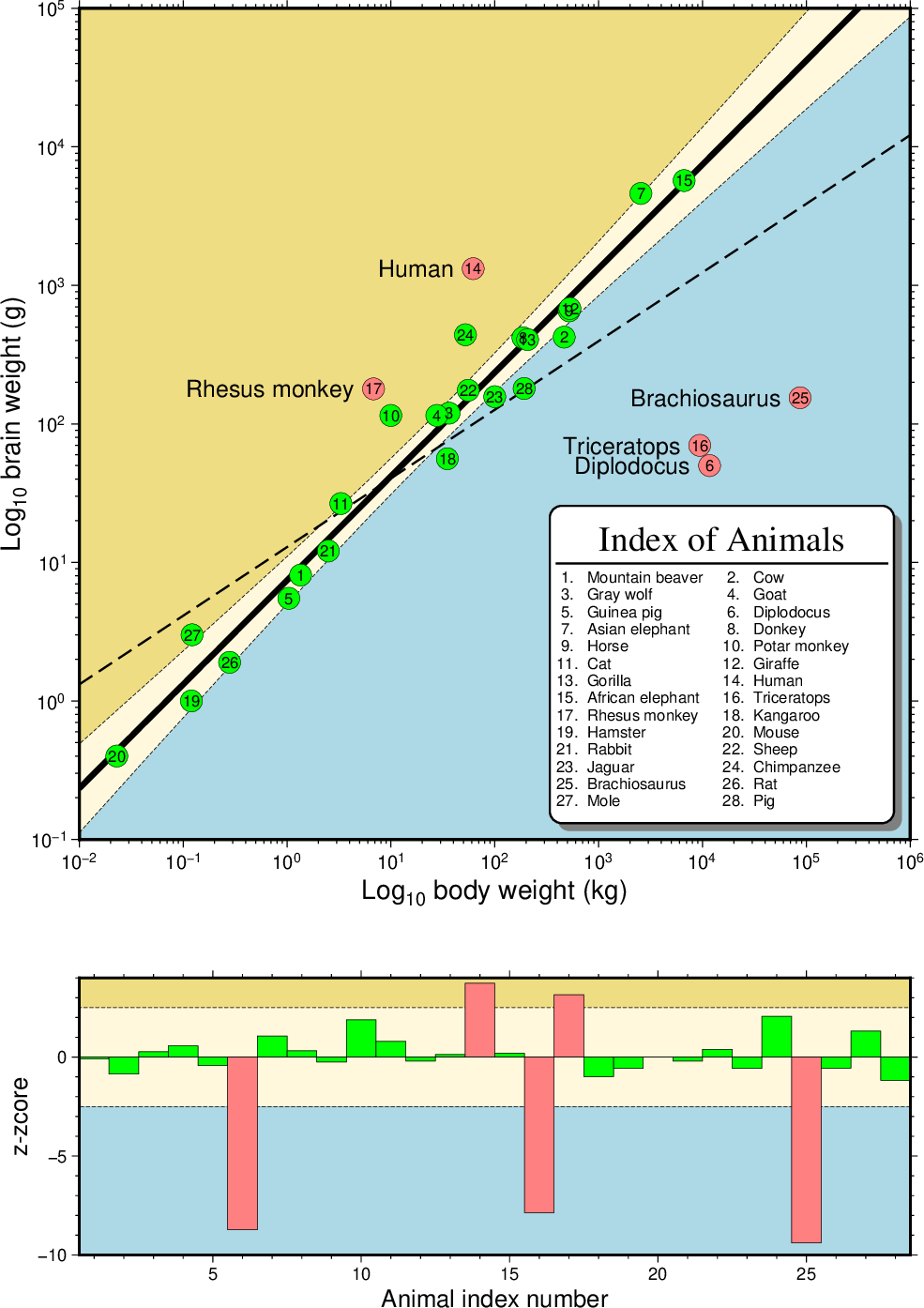

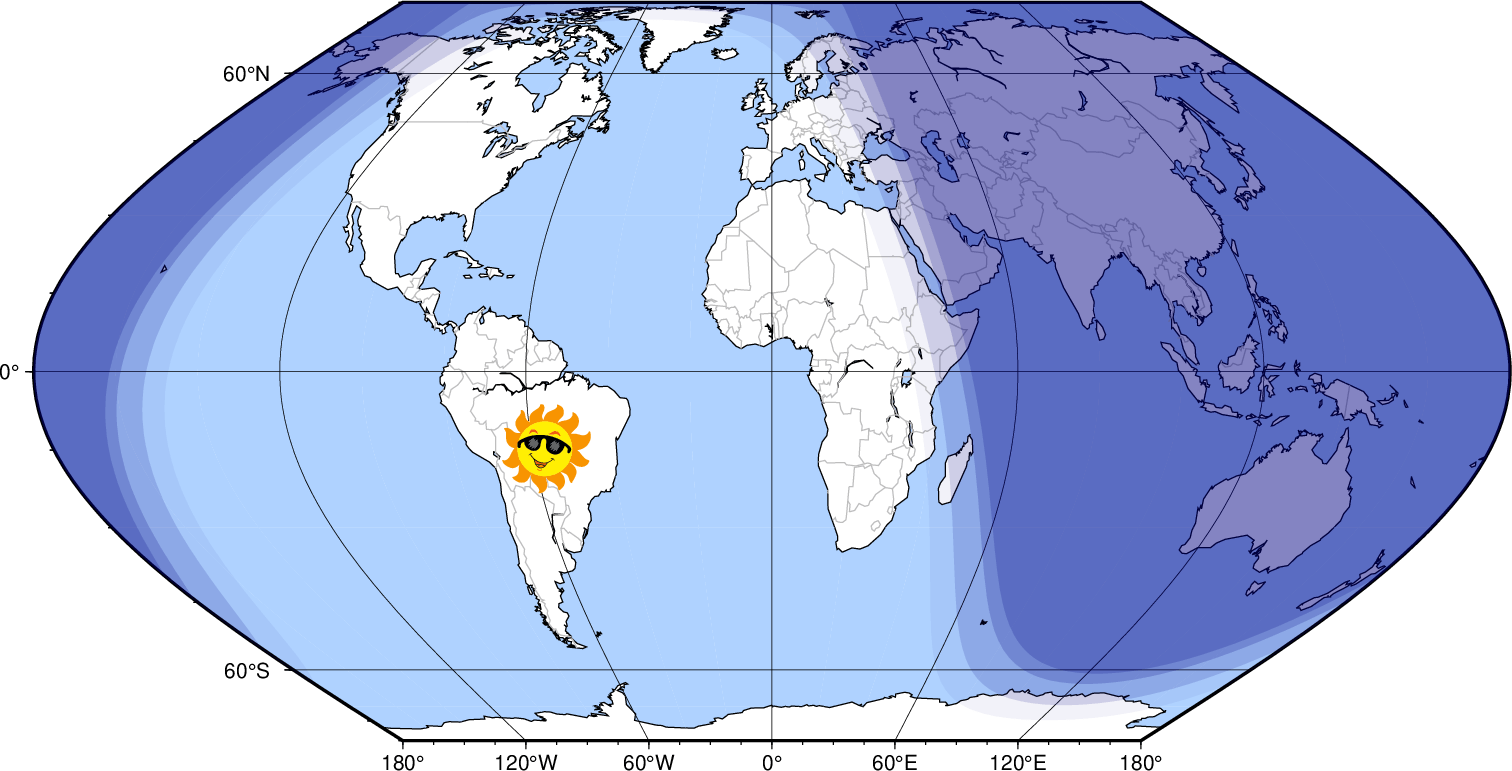

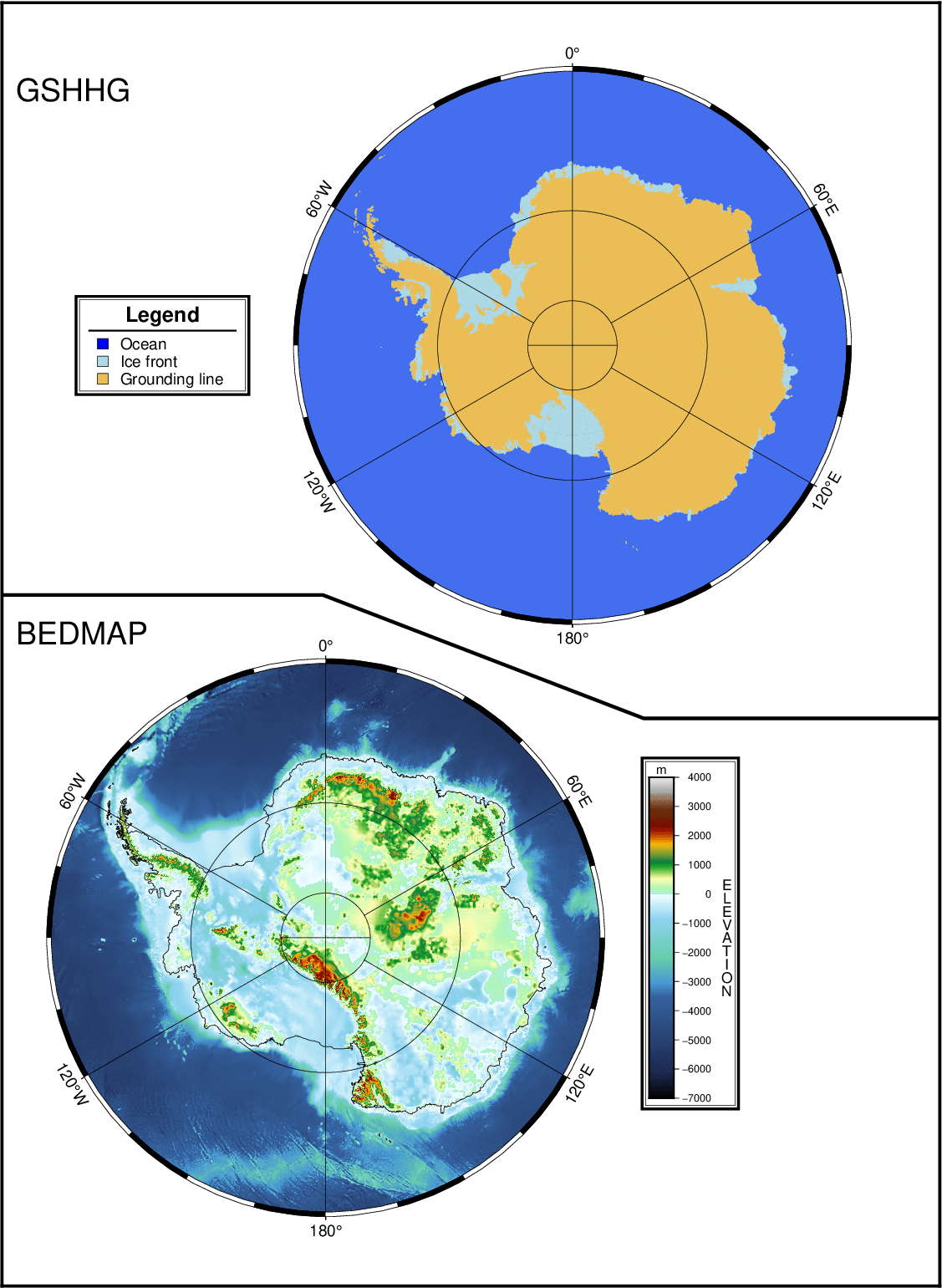

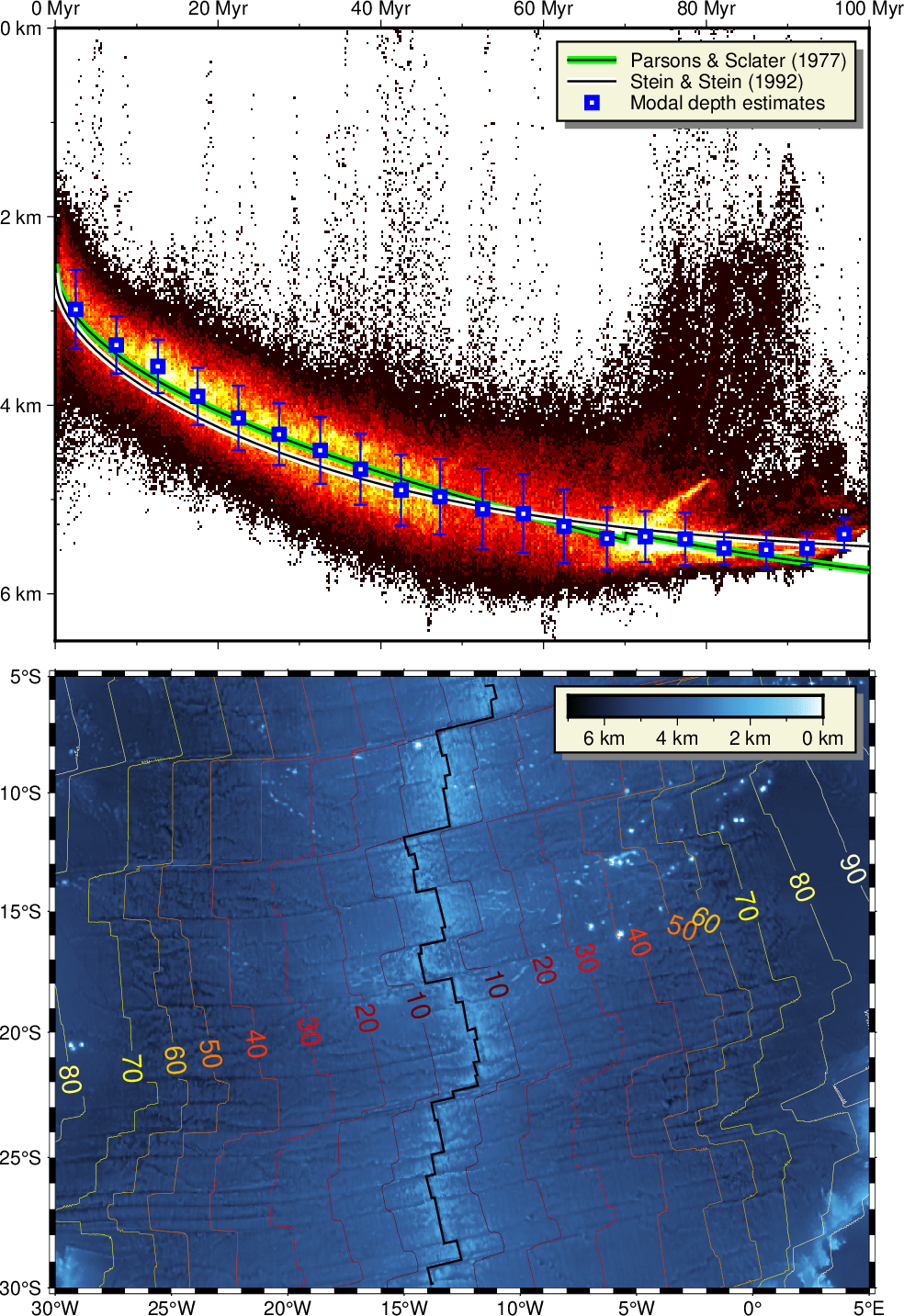

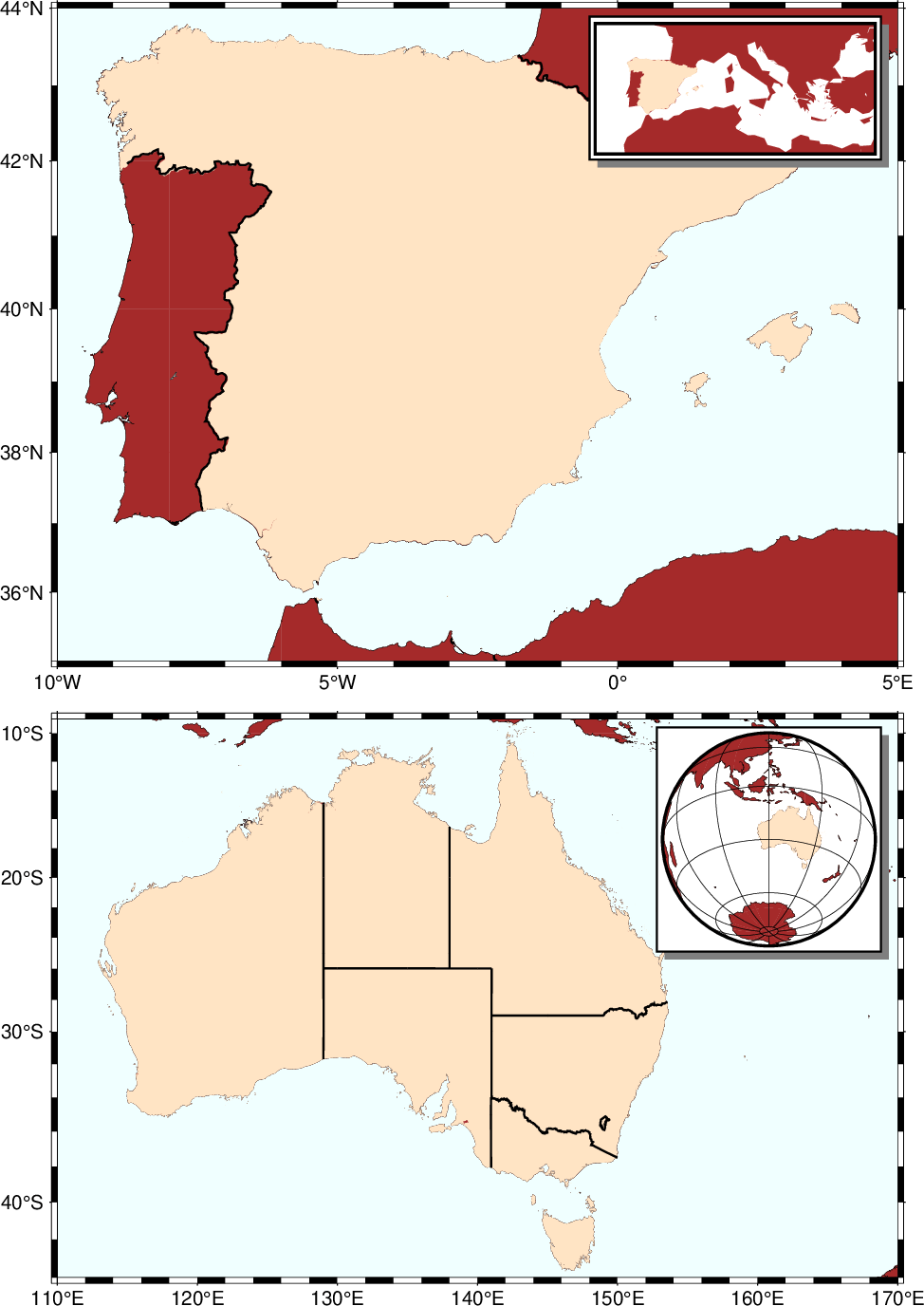

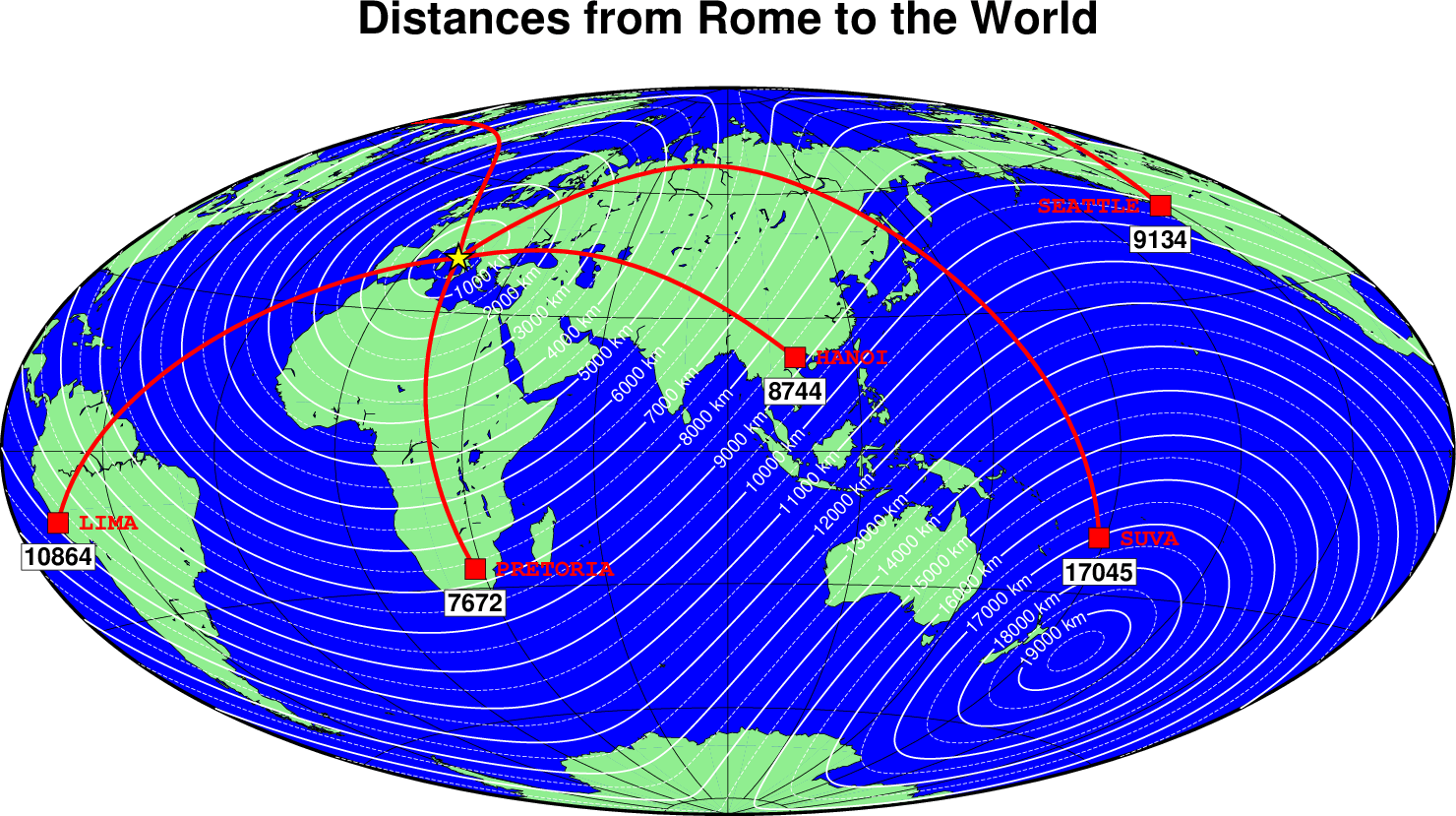

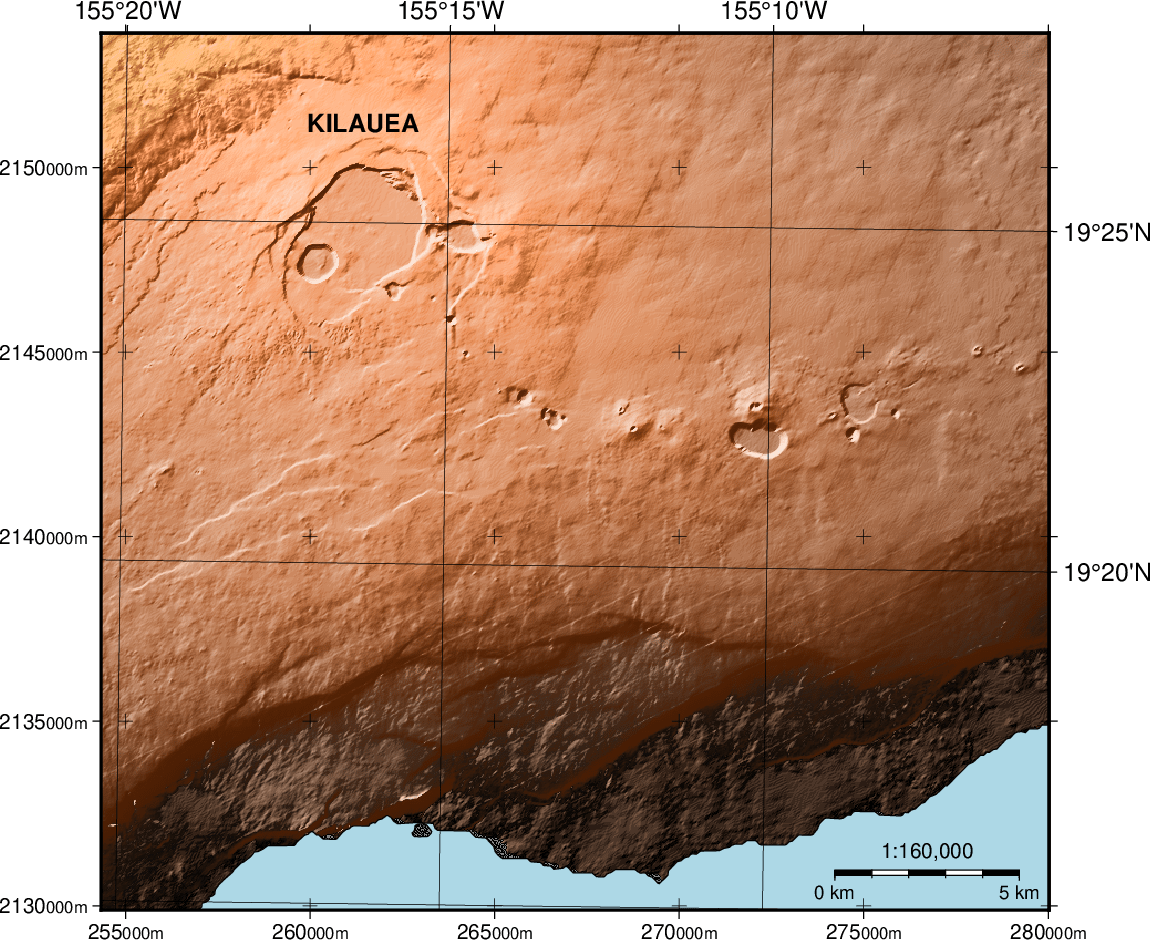

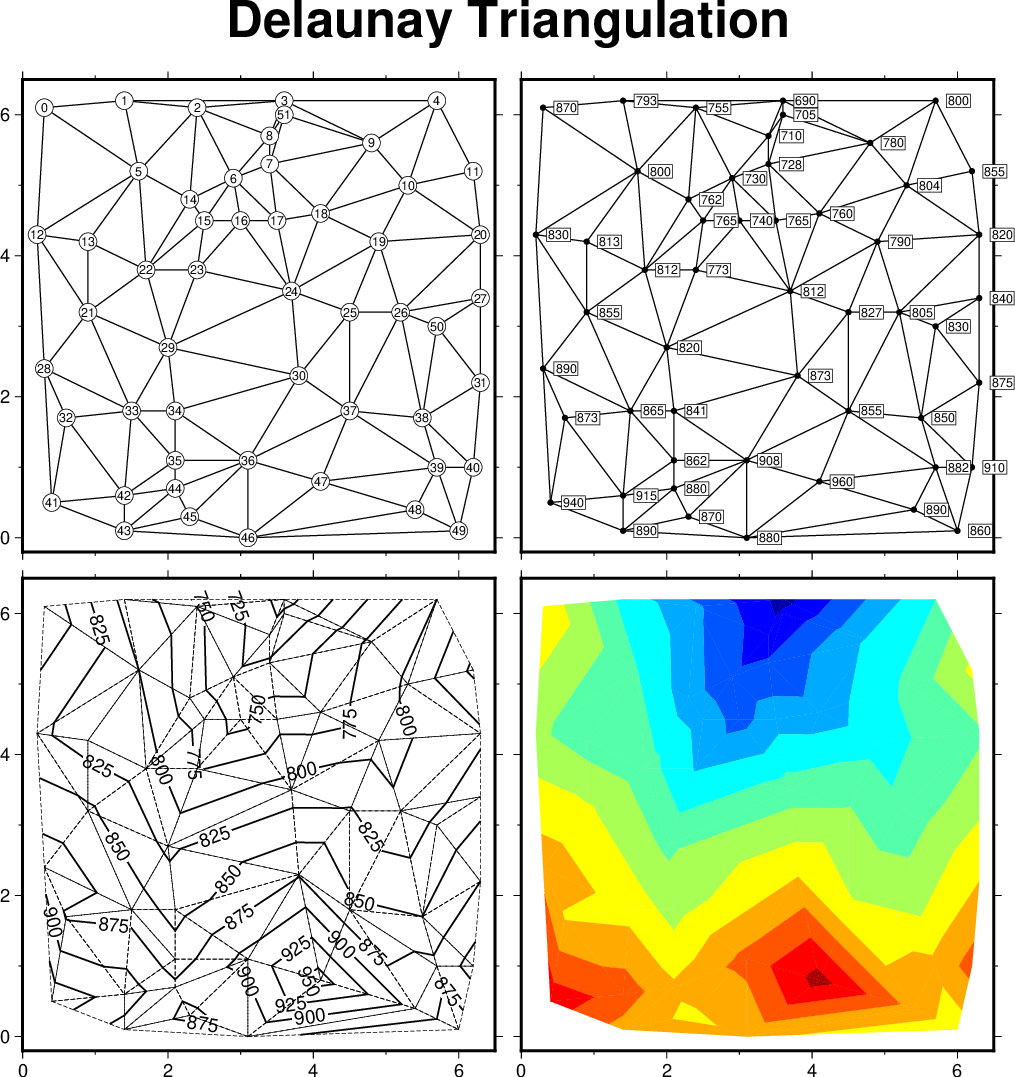

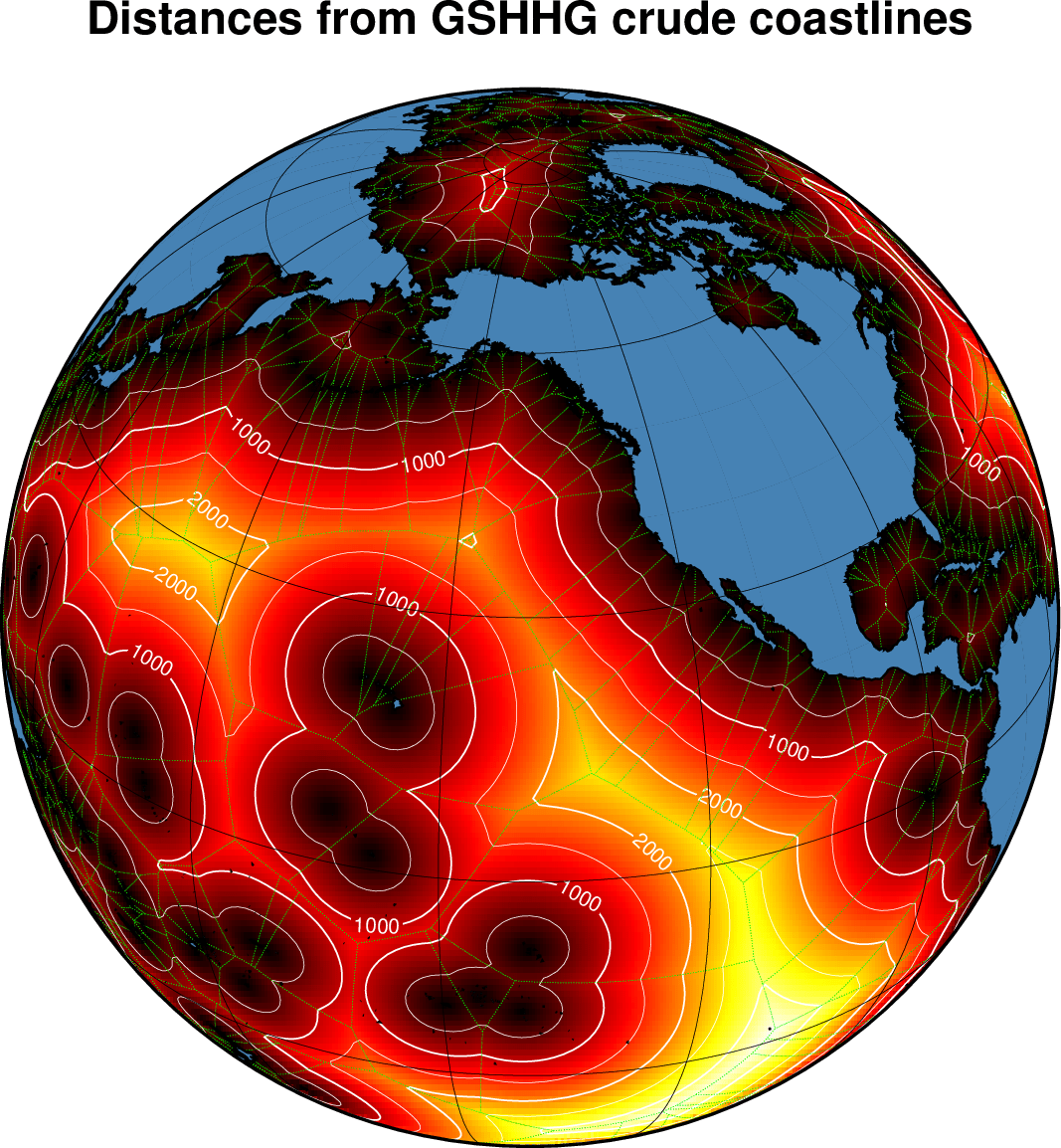

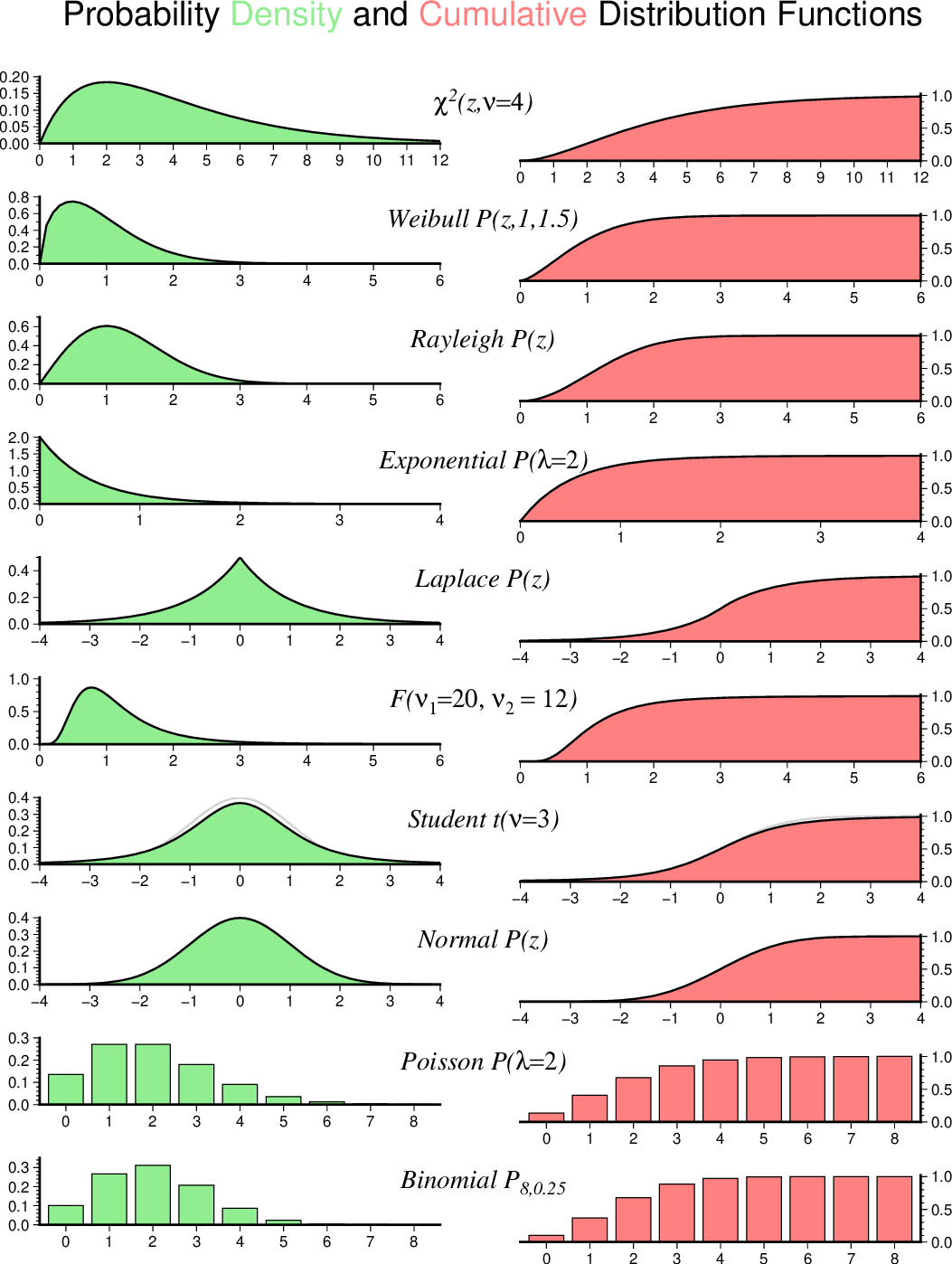

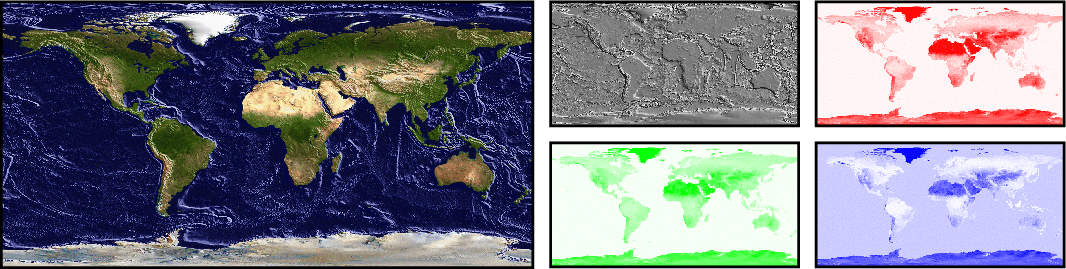

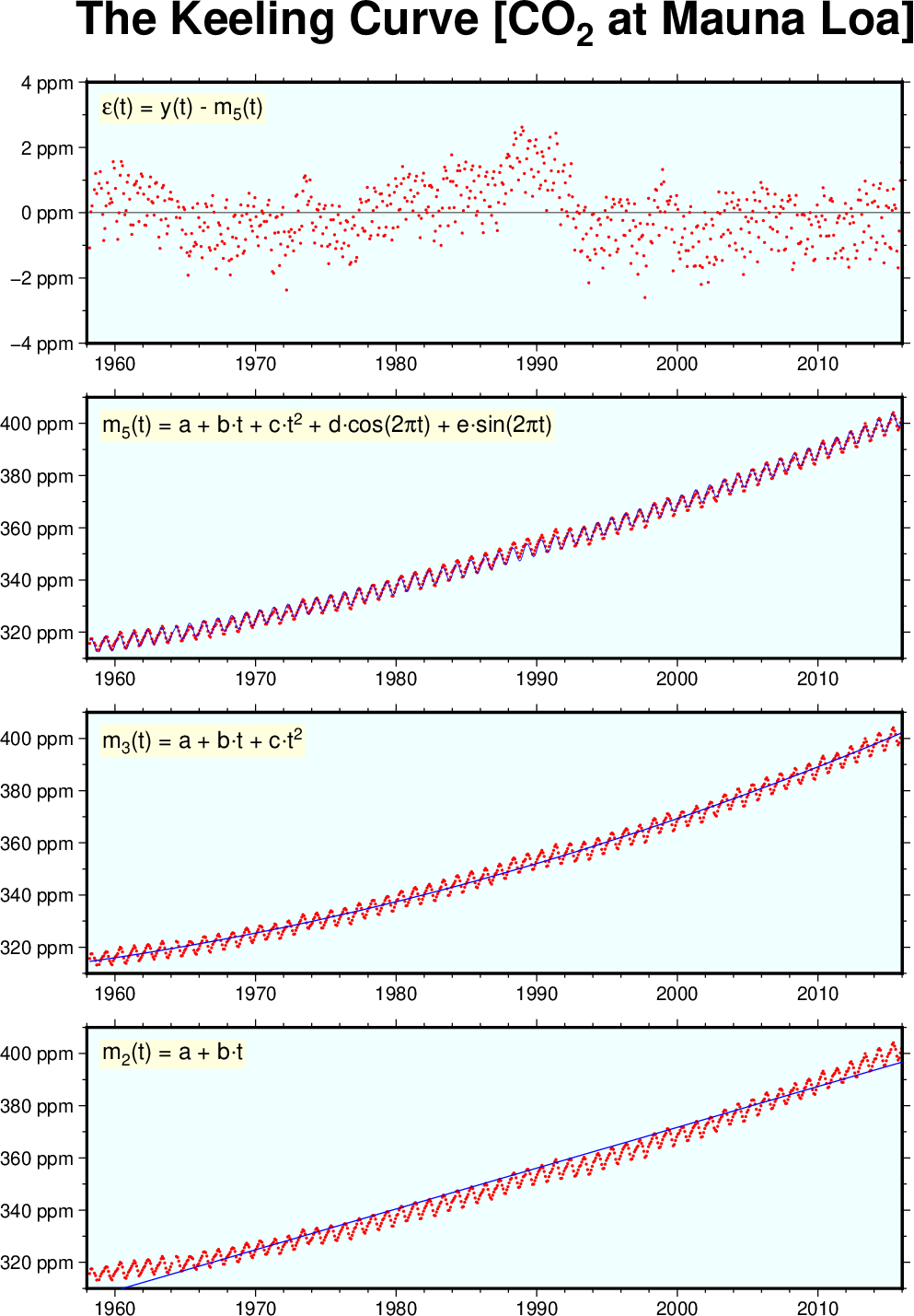

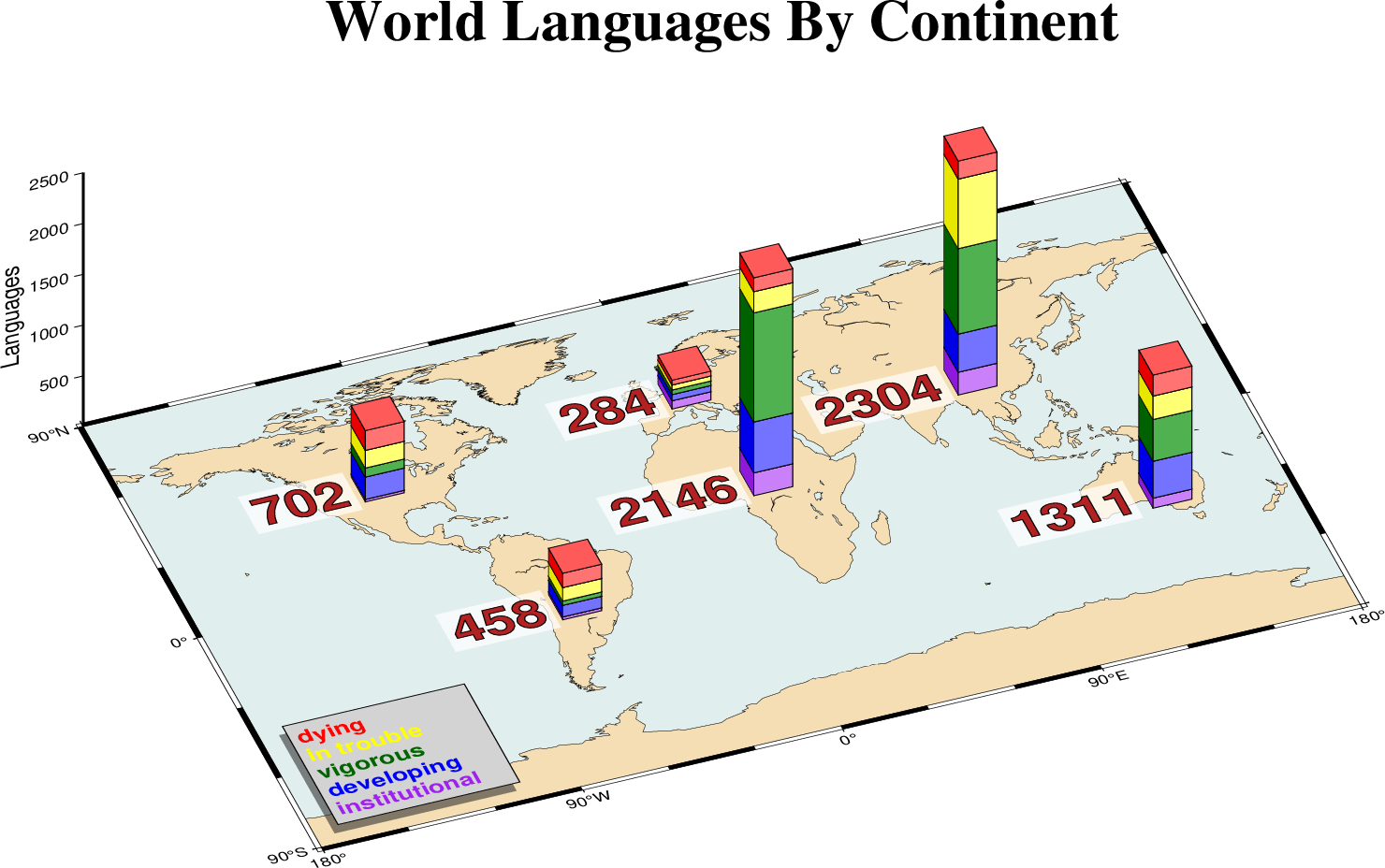

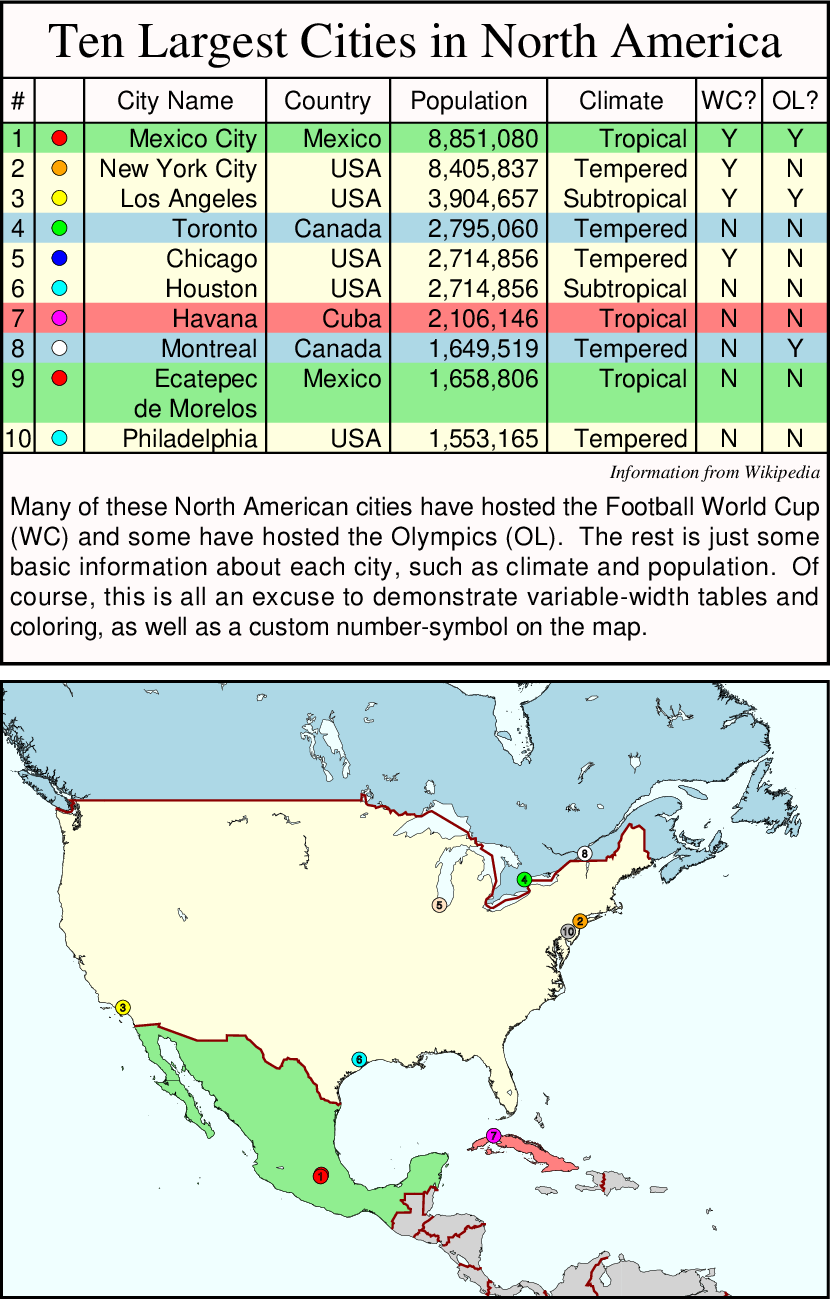

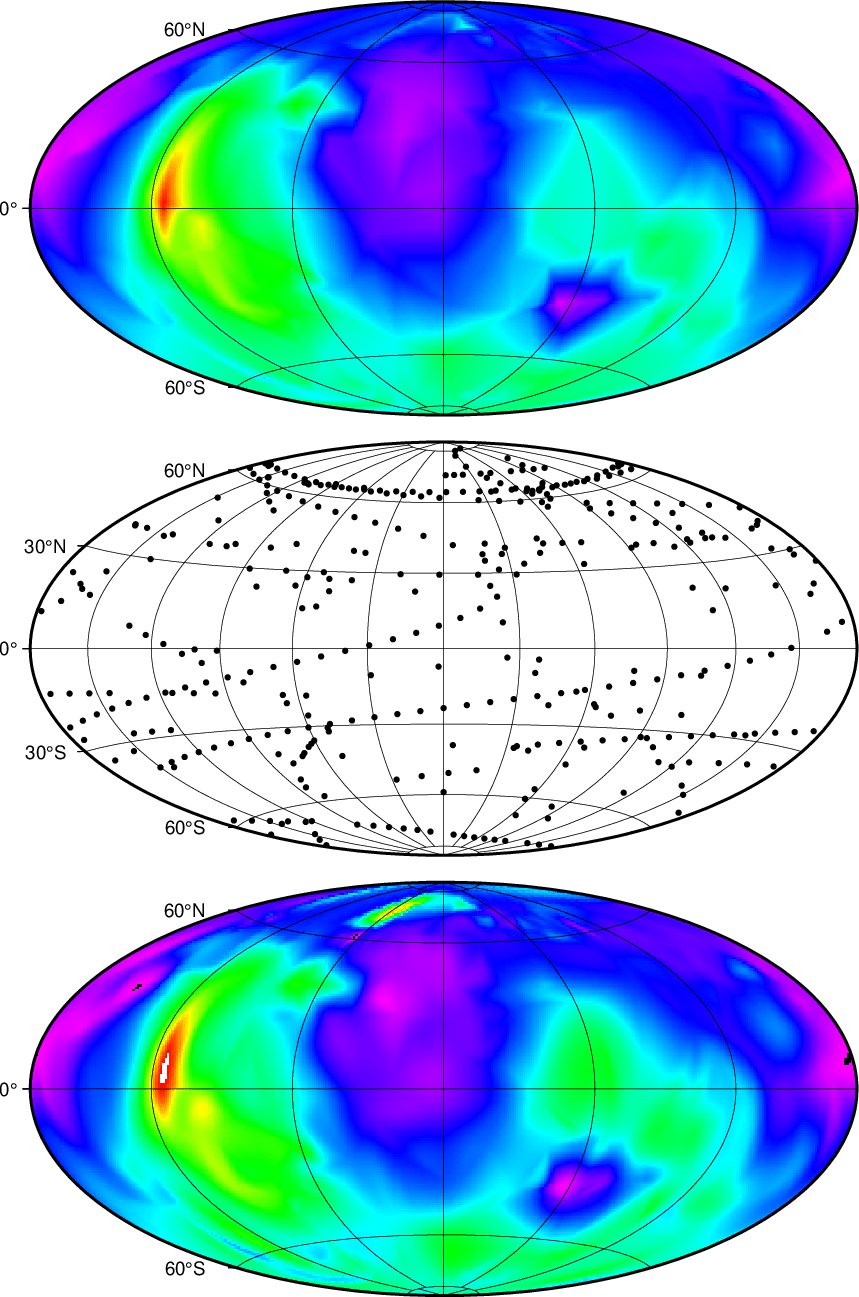

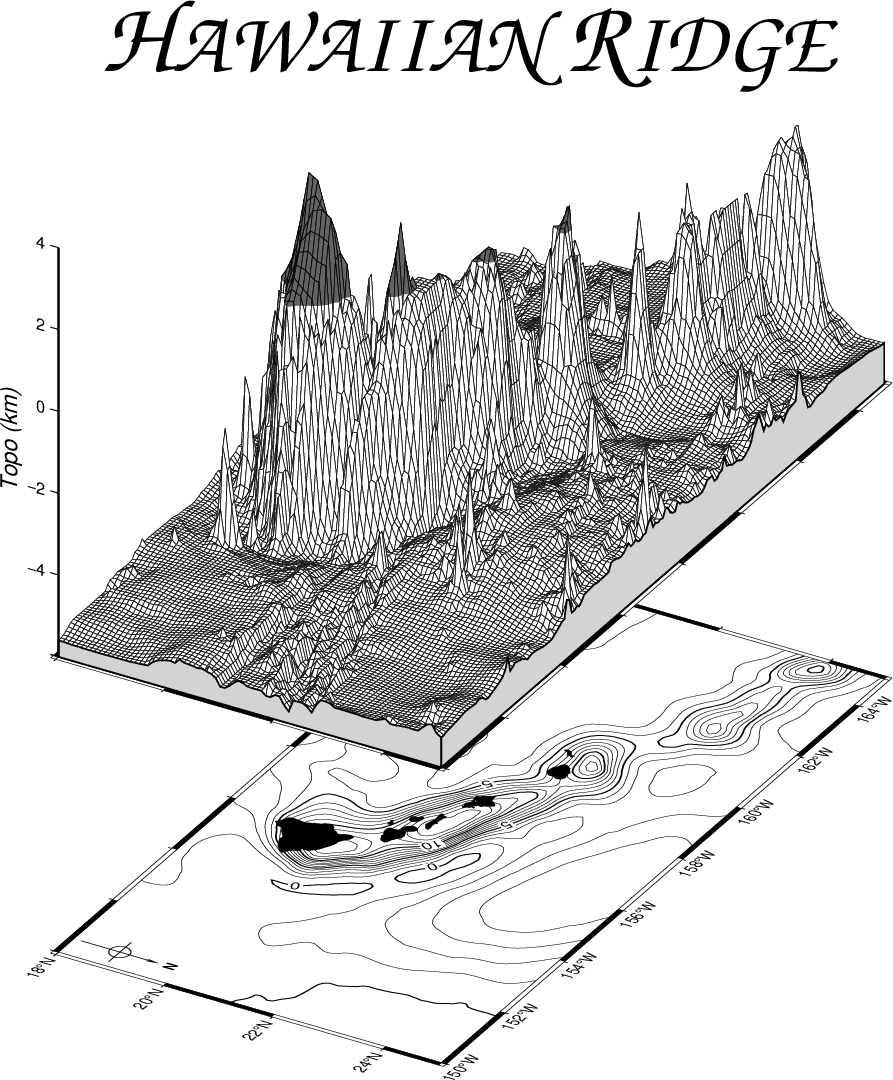

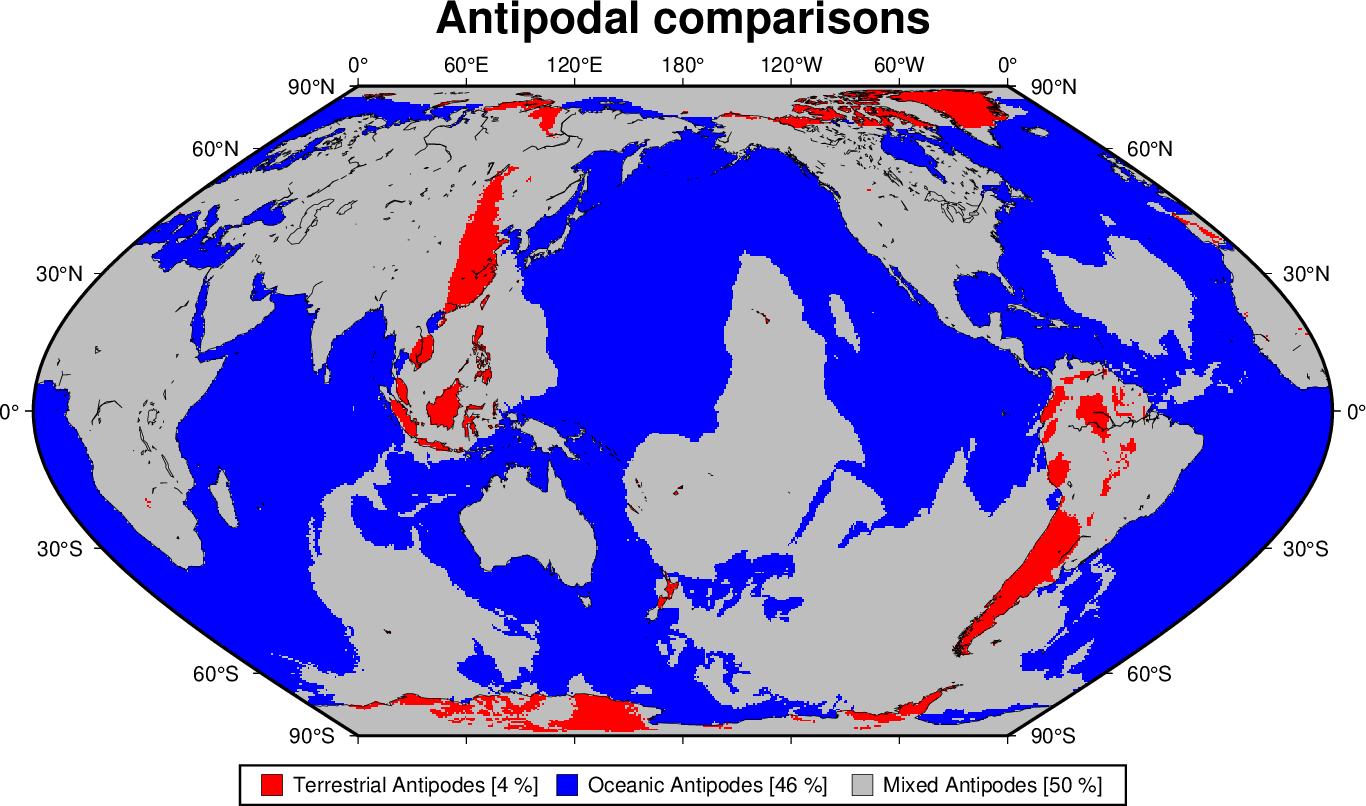

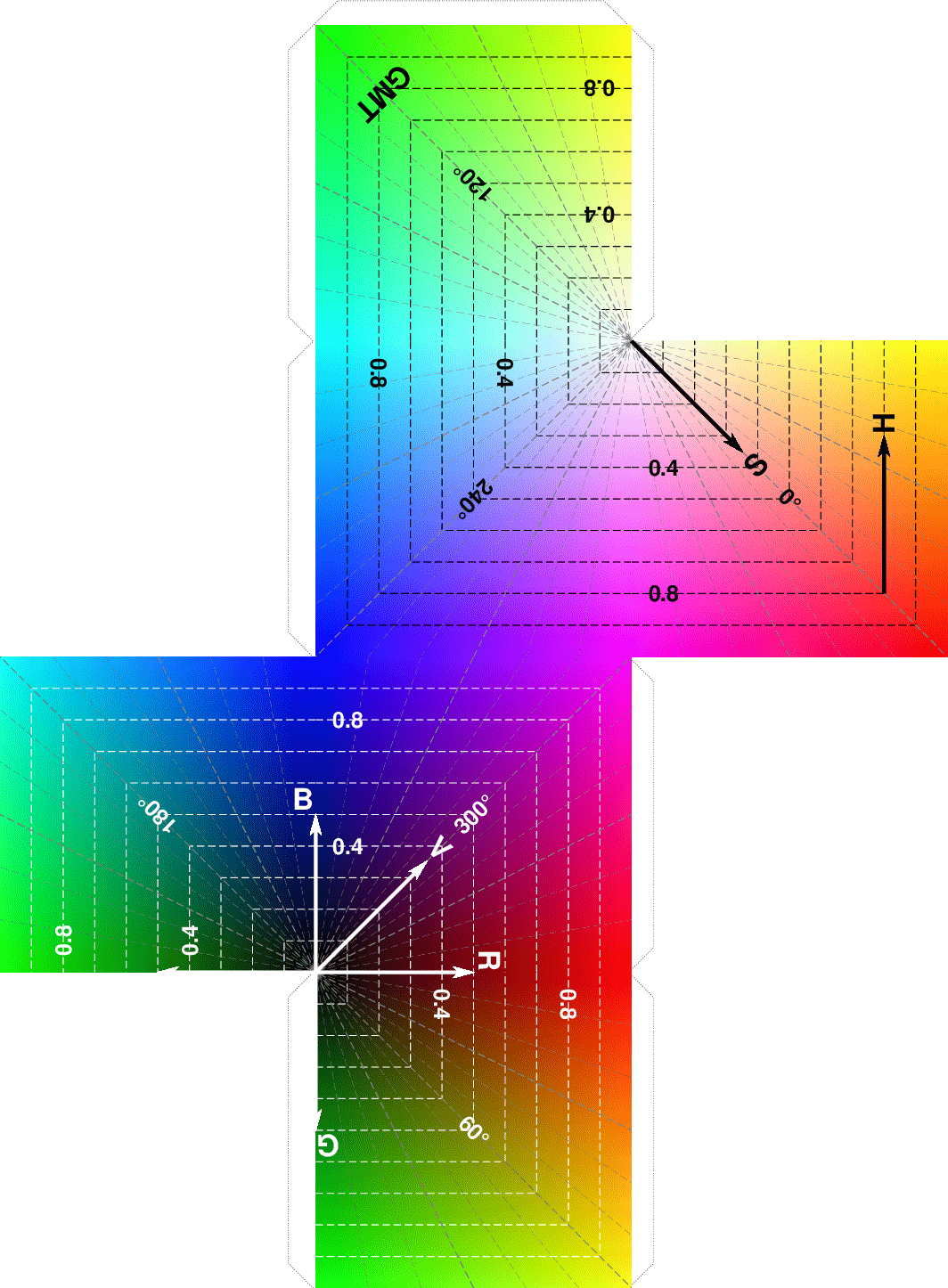

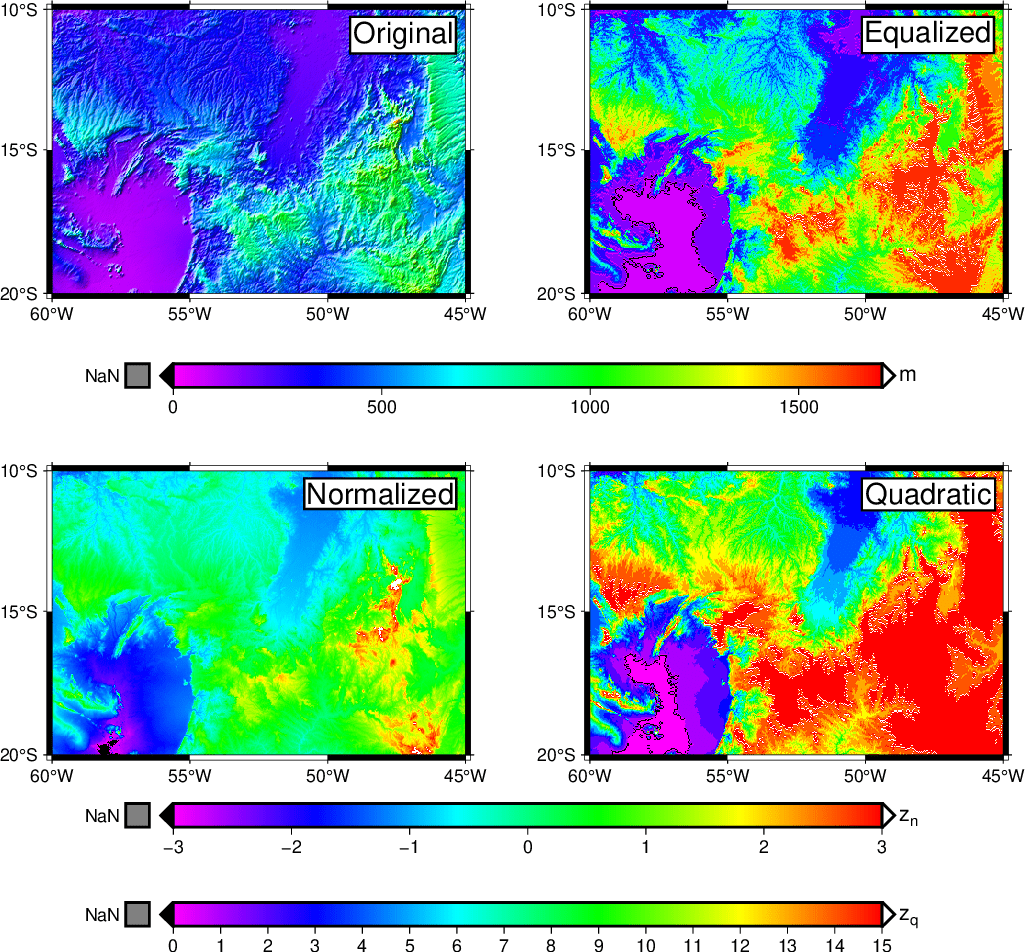

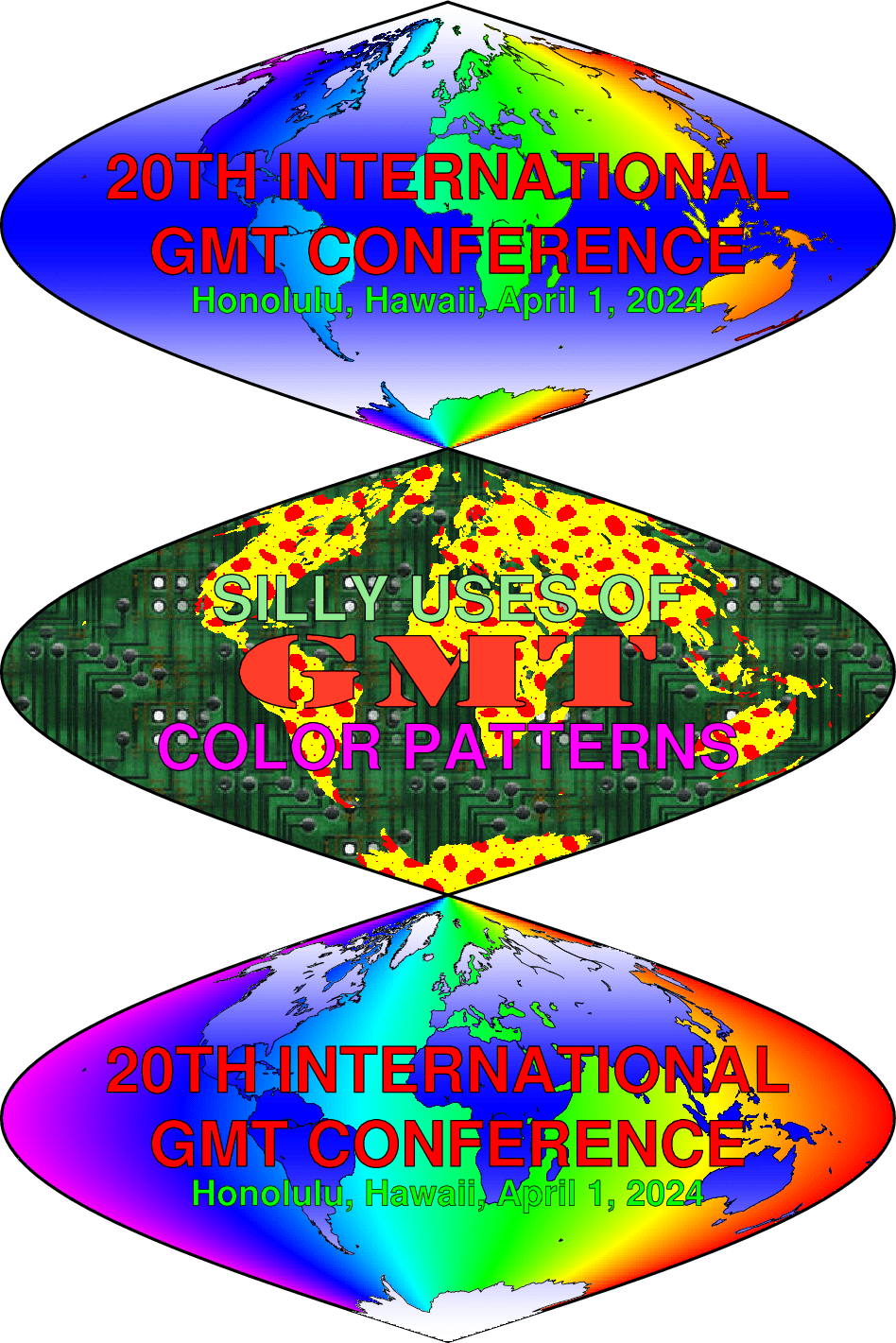

Examples
--------

.. include:: explain_example.rst_

.. include:: oneliner_info.rst_

To plot just the red outlines of the (lon lat text strings) stored in the
file text.txt on a Mercator plot with the given specifications, use::

    gmt text text.txt -R-30/30/-10/20 -Jm0.1i -F+f18p,Helvetica,-=0.5p,red -B5 -pdf plot

To plot a text at the upper left corner of a 10 cm map::

    echo TopLeft | gmt text -R1/10/1/10 -JX10 -B -F+cTL -pdf plot

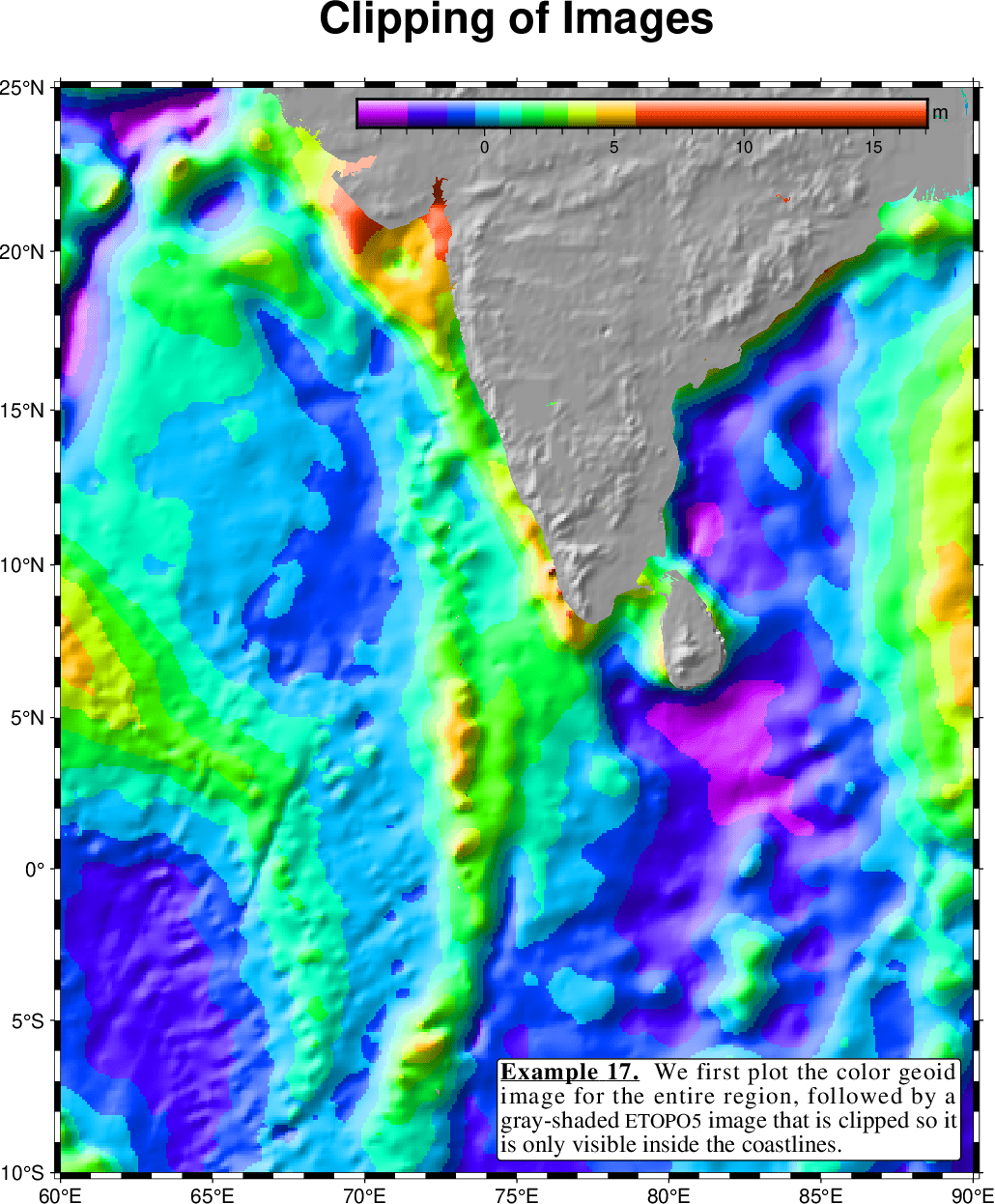

To add a typeset figure caption for a 3-inch wide illustration, use::

    gmt text -R0/3/0/5 -JX3i -h1 -M -N -F+f12,Times-Roman+jLT -pdf figure << EOF
    This is an unmarked header record not starting with #
    > 0 -0.5 13p 3i j
    @%5%Figure 1.@%% This illustration shows nothing useful, but it still needs
    a figure caption. Highlighted in @;255/0/0;red@;; you can see the locations
    of cities where it is @\_impossible@\_ to get any good Thai food; these are to be avoided.
    EOF

To place a line containing a Latex equation, try::

    echo 3 3 'Use @[\Delta g = 2\pi\rho Gh@[' | gmt text -R0/6/0/6 -JX15c -B -F+f32p+a30 -pdf map

To place text with a surrounding box and an underlying, shifted shade, both using a rounded rectangle, try::

    gmt text -R0/10/0/5 -Jx1c -F+f32p+cCM+tWELCOME -B -Gyellow -Wfaint -S -C+tO -pdf map

.. include:: text_notes.rst_

See Also
--------

:doc:`gmt`, :doc:`gmt.conf`,
:doc:`clip`,

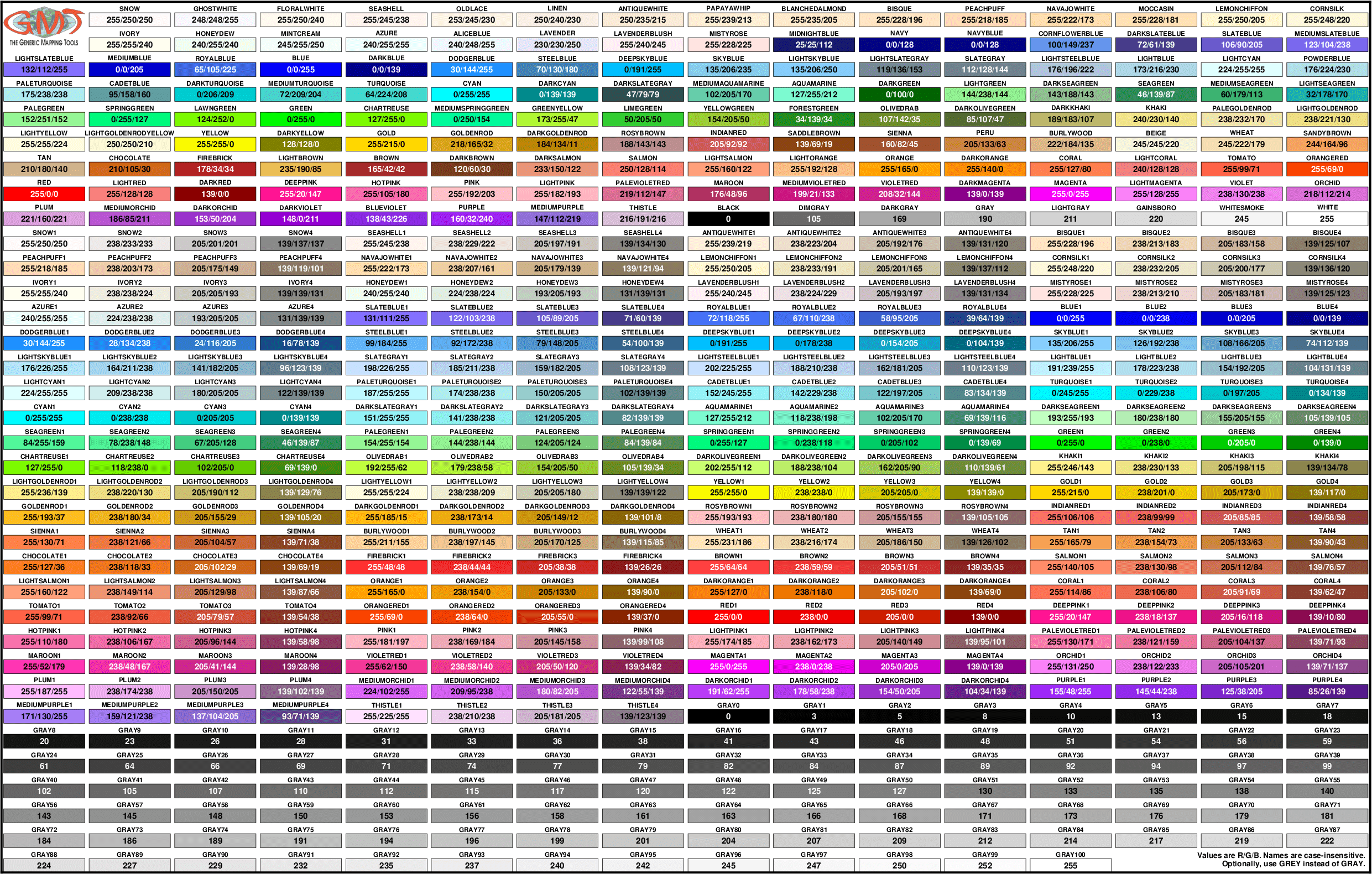

:doc:`gmtcolors`,
:doc:`psconvert`,
:doc:`basemap`,
:doc:`legend`, :doc:`plot`
